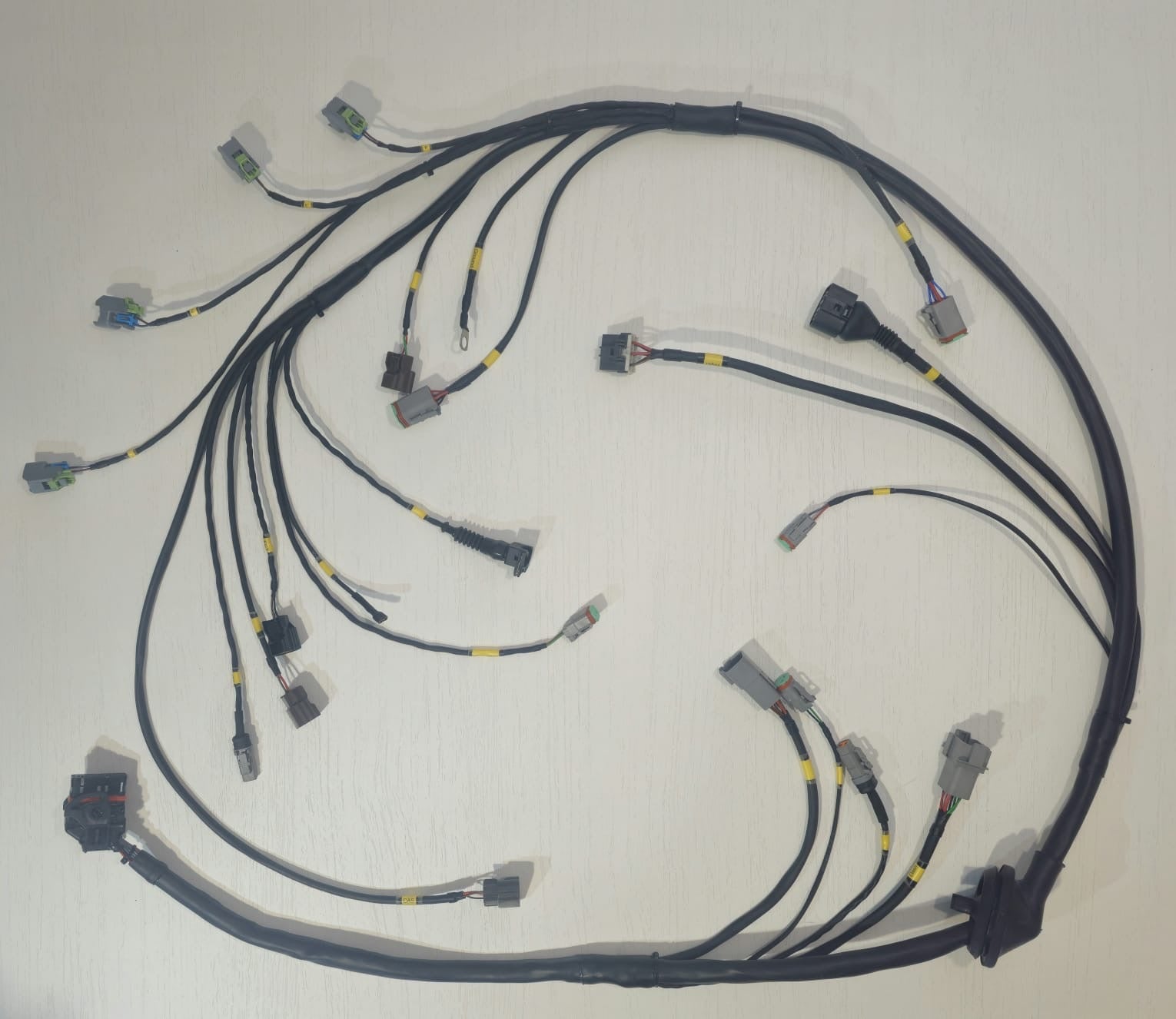

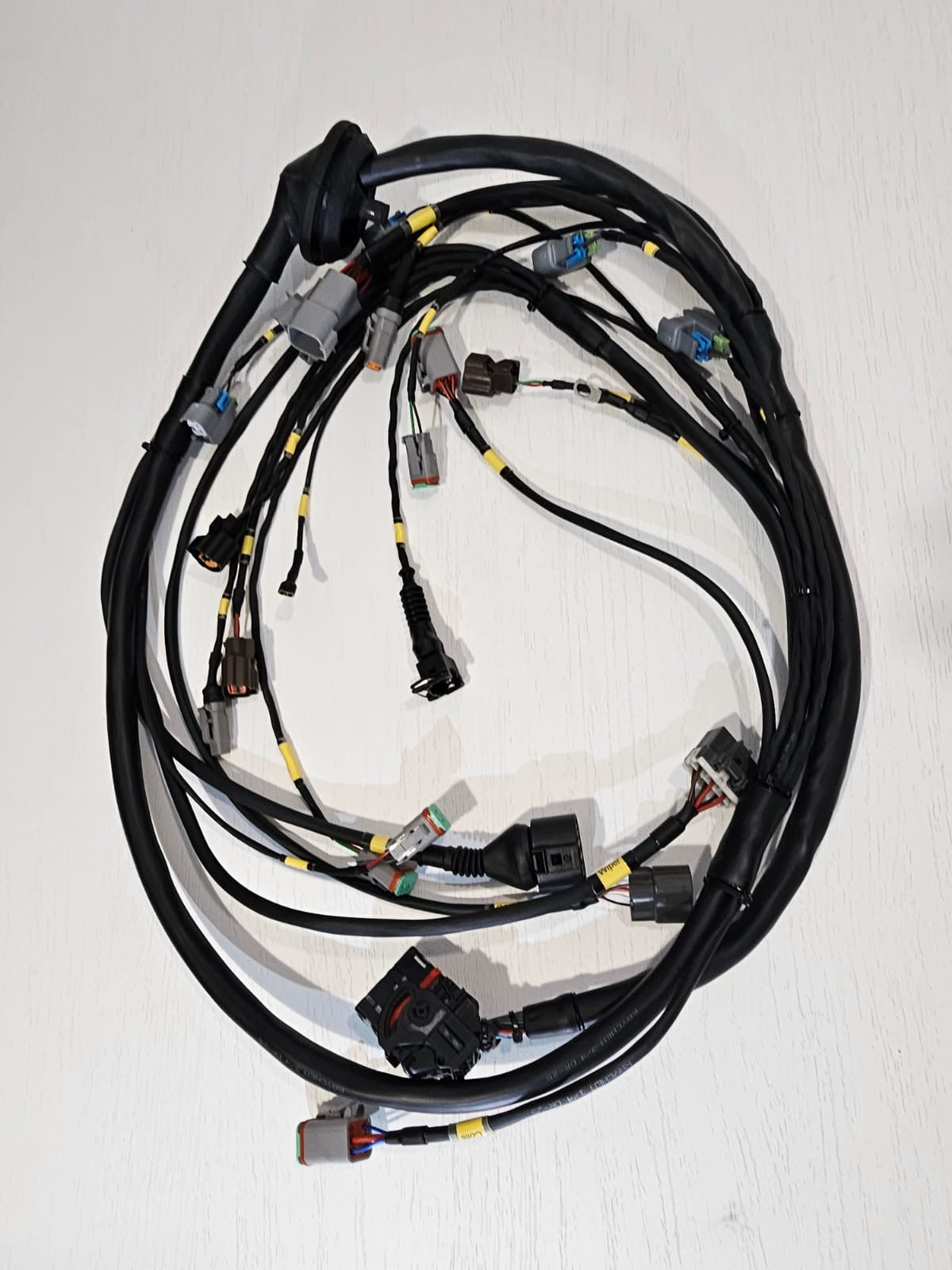

4 cylinder engine loom (Mid Tier)

Our Mid Tier looms/Harnesses are made with
the flying lead harness that the ECU manufacturers supply. This is the most
cost effective way of re-wiring the car for reliability and aesthetics. Wrapped
in dr25 they're built to last and carry a lifetime warranty on workmanship*.

Additional inputs/outputs must be purchased with the original loom, any purchases without the base loom will be refunded. *** Note if purchasing E-throttle this requires and extra 4 inputs/outputs.***

Base loom price includes:

-Sequential Ignition and injection outputs

-Any crank/cam trigger system

-Inputs for ECT, IAT, TPS, and 1 other of your choice

-CAN prewired with 12v+ and ground for easy install of CAN devices

-Outputs for fuel pump control, fan, tacho, VCT/VVT (1), boost control and 1 other of your choice.

-Any extras can be added upon request, just select the amount of extras in the menus above.

-Full documentation provided, Deutsch connectors for chassis integration, dedicated power supply relays offered upon request.

Once your order is processed we will contact you to confirm details and create a plan. All our base harness prices cover planning, materials, harness construction and installation support. If you have any questions about your build. Contact
Us for some advice!

These looms suites aftermarket ECU's like Link, Haltech, MaxxEcu, Motec, Fueltech

**All looms are limited to 3 meters in length. If you require a longer length please contact us directly.

Normal time frame should be 4-6 weeks to construct and send. If the loom falls outside this time frame for any we will inform you before commencing work.
