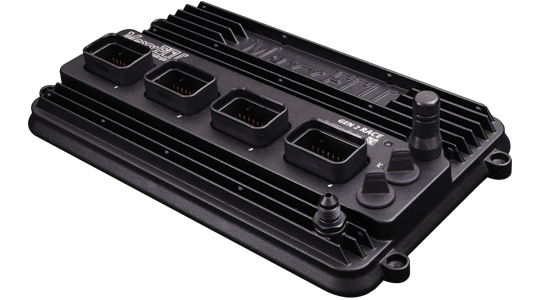

MaxxECU Gen2 Race

Introducing MaxxECU GEN2 Race- the ultimate engine control system for tuners and racing professionals. When every millisecond matters, on the street, track or dragstrip, the GEN2 Race gives you access to virtually all engine data, allowing you to fine-tune every aspect for peak performance. It comes with the intuitive MTune software for seamless tuning and real-time monitoring, plus full control with the wireless MDash Android app, taking your setup to the next level.

Target engines of MaxxECU GEN2 Race

• All 1-12 cylinder engines (2/4-stroke)
• Up to 12 cylinders fully sequentially
• Up to 12 cylinders in wasted spark

MaxxECU GEN2 Race inputs

• 8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
• 24 Analog inputs (selectable pullups)
• 8 exhaust gas temperature inputs (TYPE-K)
• Dual wideband lambda (LSU 5.2/4.9/4.2)
• Dual knock sensor input

MaxxECU GEN2 Race outputs

• 16 injectors (Peak-hold high/low impedance)/ GP outputs
• 12IGN/ GP outputs (Selectable +5V/12V/GND)
• 8GP Outputs (GND)
• 4GP Outputs (+12V)
• 4 GP Outputs (H-bridge/ E-Throttle)

Kit Options

Basic- ECU unit with plug and pins

Standard- ECU unit, 4x looms, 1x 5.2 wideband

Premium- ECU unit, 4x looms, 2x 5.2 wideband
