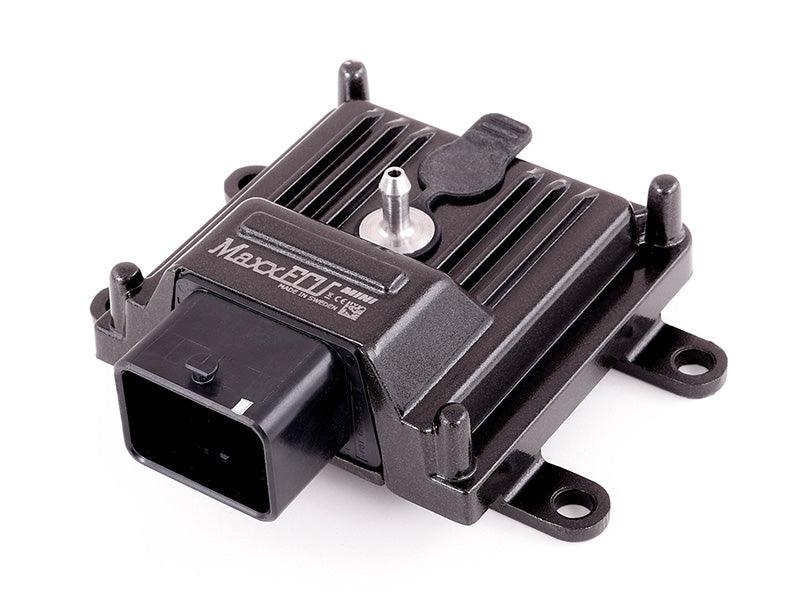

MaxxECU Mini

Advanced entry-level engine control system for up to 4 sequential cylinders. Up to 8 in wasted spark. Faster and easier tuning with the built-in MAP-sensor up to 3bar/43psi of boost. Get started faster with the easy-to-use MTune PC-software

Target engines for MaxxECU Mini

• All 1-4, 6 and 8 cylinder engines
• Up to 4 cylinders fully sequentially (using a digital input as HOME)
• Up to 8 cylinders in wasted spark

MaxxECU Mini inputs

• Intake air temperature sensor
• Coolant temperature sensor
• Throttle position sensor
• 1 trigger input (VR/HALL). Automatic trigger level detection
• 2 digital inputs used for example for speed sensors (Hall) or switches
• 2 extra 0-5V inputs. Can be used for additional sensors such as for measurement of fuel/ oil pressure
• Built-in 400kPa MAP-sensor for up to 3bar/43psi of boost

MaxxECU Mini outputs

• 4 injectors outputs. High impedance only
• 4 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
• 4 Outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (2A)

Basic —  ECU with plug and pins.

Standard — ECU with harness
