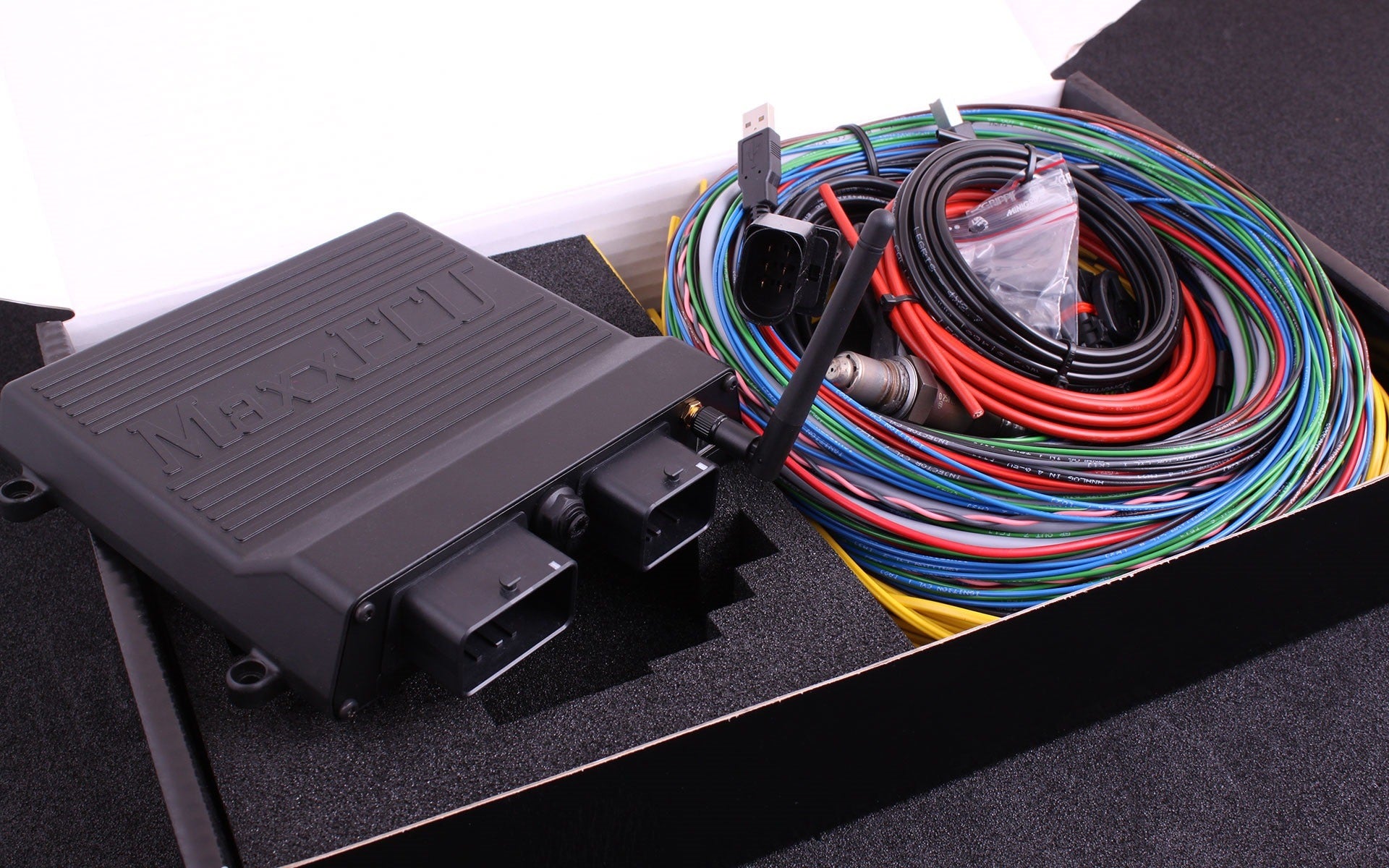

MaxxECU Pro

Introducing the ultimate engine control system for tuning experts and racing professionals who demand the best- MaxxECU PRO. When every fraction of a second matters on the street, track or dragstrip, the PRO gives you access to virtually all engine data, allowing you to fine-tune every aspect for peak performance. It comes with the intuitive MTune software for seamless tuning and real-time monitoring, plus full control with the wireless MDash Android APP, taking your setup to the next level.

Target Engines of MaxxECU Pro

• All 1-12 cylinder engines (2/4-stroke)
• Up to 12 cylinders fully sequentially
• Up to 12 cylinders in wasted spark

MaxxECU Pro inputs

• Intake air temperature sensor
• Coolant throttle sensor
• Throttle position sensor
• Dual lambda (WBO) sensor. Uses sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9
• 2 Trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
• 6 temperature sensors. Can be used for logging or control of additional functions
• 16 0-5V inputs. Can be used for additional sensors such as measurement of fuel/oil pressure
• 10 digital inputs used for example speed sensors (4 can use VR-sensors) or switches
• Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost
• 12 EGT TYPE-K/N inputs with separate harness (up to 1200c/2200F

MaxxECU Pro outputs

• 16 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output
• 12 ignition outputs. 5V signals to drive ignition modules, CDI units/coils
• 30 extra outputs for additional features. Can be adjusted to control virtually anything like fuel pumps, idle valves. GPO 1-8 (2A), GPO 9/10 (5A), GPO 11-14 (2A), GPO 15-23 (12V sourcing, 4A), GPO 23-30 (1.5A)
• Dual E-Throttle support
