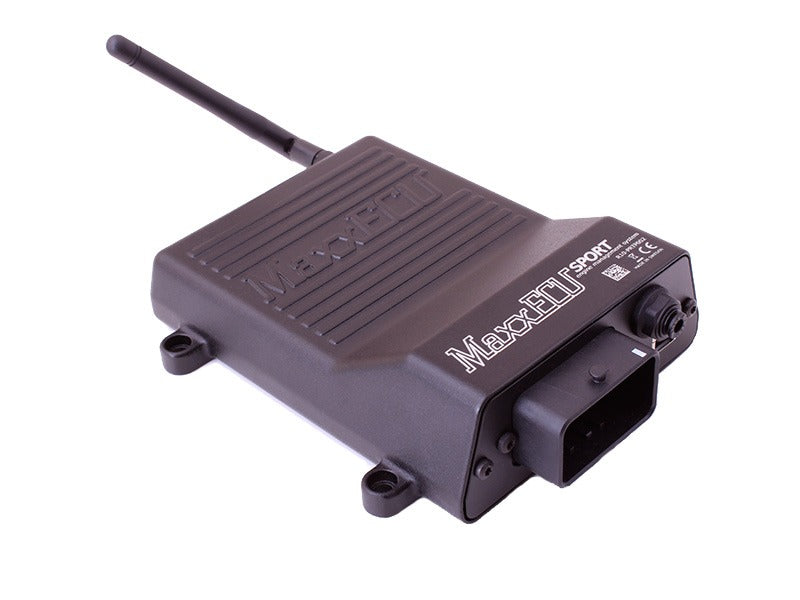

MaxxECU Sport

Extremely versatile engine control system for powerful engines with up to 6 sequential cylinders. Up to 12 cylinders in wasted spark. Faster and easier tuning with built-in wideband lambda and  a built-in MAP-sensor up to 3 bar/ 43.5 psi of boost. Get into the advanced tuning with functions such as built-in E-throttle with a superfast Cortex M3 CPU and Bluetooth connectivity.

Target engines of MaxxECU Sport

• All 1-12 cylinder engines (2/4-stroke)

• Up to 6 cylinders fully sequential
• Up to 12 cylinders in wasted spark

MaxxECU Sport inputs

• Intake air temperature sensor
• Coolant temperature sensor
• Throttle position sensor
• Lambda (WBO sensor. Uses a sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9
• 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference.
• 2 extra temperature sensors. Can be used as switches or to control additional functions.
• 6 extra 0-5V inputs. Can be used for additional sensors such as measurement oil/fuel pressure
• 2 digital inputs used for example for speed sensors (Hall) or switches
• Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost

MaxxECU Sport outputs

• 6 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output
• 6 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
• 7 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 8 (5A), GPO 9 (2A)
• 2 extra motor outputs (e.g E-throttle). GPO 11,12 (2A)

Kit Options

Basic — ECU, connector plug with pins, vacuum hose adapter, USB cable, Bluetooth antenna, pinout sheet
Standard — ECU, 3m pre-wired loom with extra cable, push-lock vacuum hose and fittings, USB cable, Bluetooth antenna, pinout sheet
Premium — ECU, 3m pre-wired loom with extra cable, push-lock vacuum hose and fittings, LSU 4.2 wideband sensor with connector, USB cable, Bluetooth antenna, pinout sheet
